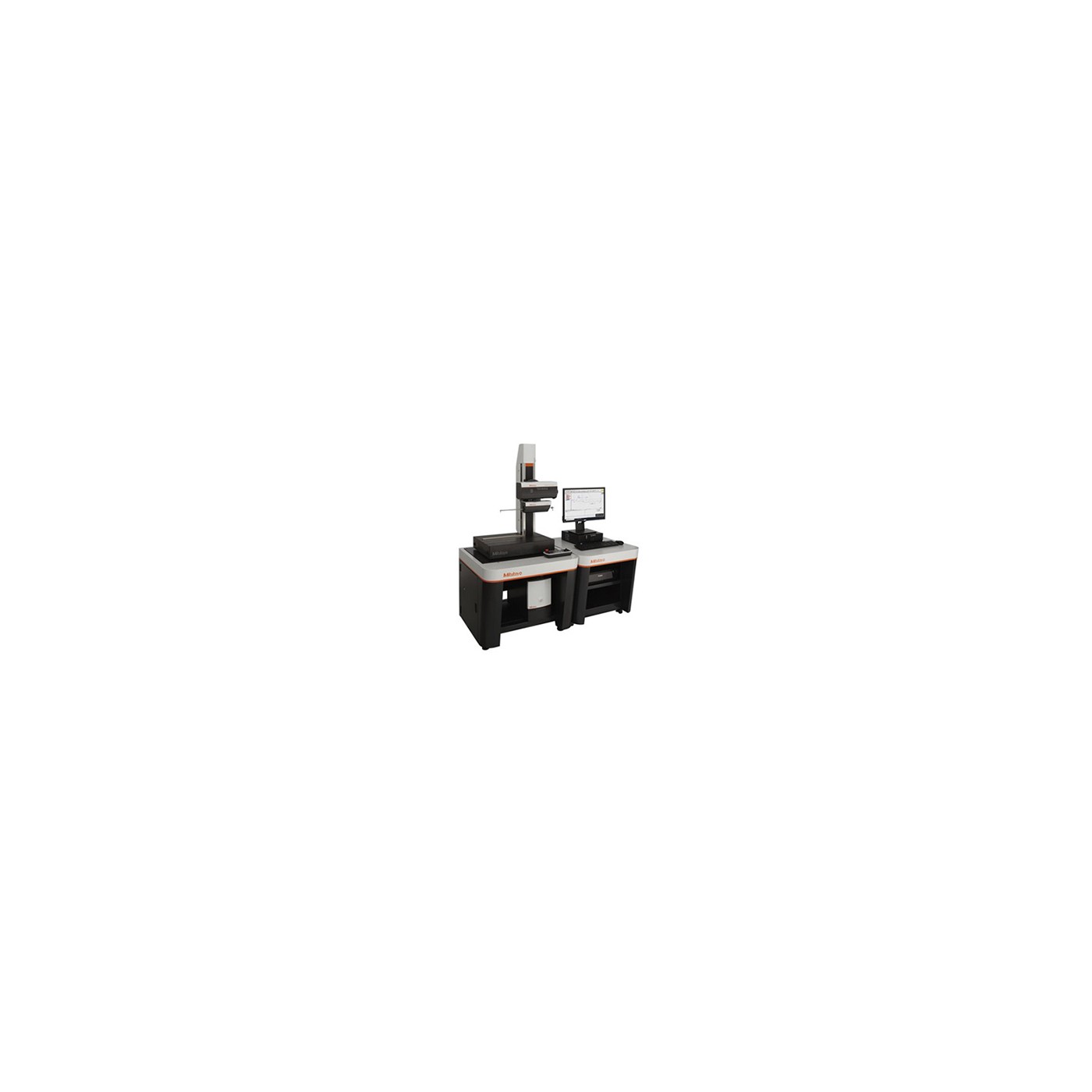

형상측정기
Control system | Contorur Measuring Instrument |
Measuring range | 100mm (X axis) 800㎛, 80㎛, 8㎛ (Z1 axis) |
Measuring speed | 0.02 ~ 20mm/s |
Measuring method | Skidless / skidded measurement |
Drive unit | Auto Pneumati Actuator |
Measuring force | 0.75mN / 4mN |
Resolution | 0.01㎛ / 0.01㎛ / 0.0001㎛ |
Stylus tip radius | R=2㎛ 60° L*5.2mm
|
